GQ MQ Y60 PATROL 2X 7'' 105W LEGAL Round LED DRL+TURN Headlights


From my testing they are 7.7W on low beam and 33 W on High beam.. With poor beam pattern and high glare. 7 Round lights direct replacement of sealed beam and H4 no mucking around, Plug and Play. (GQ requires modification to bowls).

130W version 66% brighter high beam available now. Are these Better than "Narva Tuck Lites" - Yes and 1/5 of the cost. Low beam is better and High beam is also better. On some models you may have to make some room for the breathers at the rear.

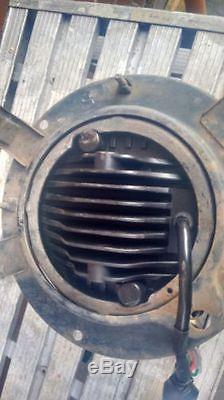

(see photos) of modifications needed. If the lights appear dull then check you have at least 11 Volts when they are running. They start dimming around 10.8 Volts. Some models may also need longer screws for the halo ring (outer holder).

105 Watts not 26 watts like others. These have DRL (White Parker) and Orange TURN indicator. Yes these are Hi/Lo beam head lamps.

9-16 Volts Not suitable for 24V systems. They have + and - terminals.

There is also a Discovery 1 conversion kit coming see photos of drawings. I was asked to find these lights by a few local 4x4 clubs searching for better lights that are Legal in NSW , VIC and QLD. After studying ARD46/00 and many exhaustive discussions with Chinese Manufacturing companies over several months I was able to Locate, modify and certify these lights for Australian useage. I only sell things that I have personally used, and others have tested. That's how a 4x4 club works!

You can tell the poor quality ones. They have straight led bars not curved, you can see the individual LEDs. They also do not have molded end plugs, and Breathers at the rear. Cleaning is via soft brush and mild soap. Certified by SAE, DOT, and E Mark and I have the proof of certification. LEGAL in ALL Australian States under.

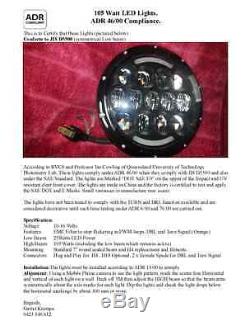

ADR 46/00 section 7.8. Listed else where be quick these are the first Legal high Wattage Lights available in Australia. Come with integrated parker / DRL with 2 x Female spade connectors fitted and a H4 style 3 pin connector. These are HIGH CRI (Colour rendition Index) LEDS.

That means great visibility under all conditions. The LEDs are the same "colour temperature" as a clear sky around Miday. Face to back they are 65mm. Rear mounting Holes are M8 and bracket (not supplied) width at back is 85mm 2 x M8 holes are separated by 15 mm centre to centre.

They suite Jeeps, Nissan's, Harleys (with rear mounting) Range Rover Classic (RRC) Defender, many trucks. I'm stoked at these lights so I thought I'd offer them to the general public after all the testing we've done.

Weight is 2.5 KG per pair. NOTE: DO NOT block the breathers on these lights. The frontal area is very large and 0.5 PSI is equal to 12 Kgs pushing the front cover off the assembly.

The breathers are there to stop this from happening. The heat generated causes pressure build up inside the light as the air expands. This WILL lead to moisture getting into the lights as the front seal is VERY important. If you have inadvertently done this then you can remove the front faceia using a 2.5mm Allan key and re-seal with black neutral cure silicone after drying with a hair drier on LOW setting. New stock arriving every week.

The item "GQ MQ Y60 PATROL 2X 7'' 105W LEGAL Round LED DRL+TURN Headlights" is in sale since Thursday, June 23, 2016. This item is in the category "Vehicle Parts & Accessories\Car, Truck Parts\Lights, Indicators\LED Lights".

The seller is "garret-au" and is located in Baulkham Hills, NSW. This item can be shipped worldwide.

1. Bulb Colour: 6000K
2. Manufacturer Part Number: NP 7" 105W
3. To Fit: 7" ROUND
4. Placement on Vehicle: Front
5. Brand: ultraflex
6. Type: LED
7. Bulb Size: 105
